Code 800 PRO

UltrapanelPRO

Dual Color Hard 30

72,000 Lux at 1 m

Unleash the ultimate beast!

The brightest 1x1 LED panel on the market.

The new UltrapanelPRO Dual Color Hard 30 is the ultimate 1 x 1 LED panel with its 72,000 Lux at 1 m. It is a deluxe version of the Superpanel Dual Color Hard 30 with all the technical and optical features of the latter but with double the light output. Top CRI and TLCI, AC/DC operation with practical and economical 14 V and 160 Wh batteries, DMX, RDM and Bluetooth Long Range control. The Ultrapanel is a surprisingly practical light with ultra-professional performance, suitable for film sets and TV studios that need high performance lighting. The incredible light output has been achieved by using the latest generation of LEDs and the light beam angle is the same as the Superpanel Hard models (40°).

Product specifications

Dimensions (mm):

350 x 353.3 x 117 mm

Dimensions (inch):

13.7 x 13.8 x 4.6 in

Weight (g):

4.9 Kg

Weight (lb):

10.8 lb

Voltage AC:

90 V – 240 V

Watt consumption:

220 W

Battery:

14.8 V, 160 Wh, standard XLR 4 pin

Frequency (input):

50/60 Hz

Compliance:

Remote control:

Bluetooth Long Range / DMX / RDM

Intensity light dimmer

100 %

Colour Temperature

6500 K

2800 K

Colour Rendering Index

CRI

100

95

TLCI

100

96

Dimming curves modes

LINEAR

EXPONENTIAL

LOGARITHMIC

Modes

CCT

Preset

1 - 3

Special Light

Smooth dimming

DMX

8/16 bit - 1/512 Channels

Mains or battery operation

Perfect for video shootings.
In studio or on location.

The UltrapanelPRO are the latest generation LED panels designed for broadcast, film and video shooting. The UltrapanelPRO use 400 high-quality LEDs, with high luminous efficiency, to ensure an accurate colour temperature and a high CRI (Color Rendering Index) and TLCI (Television Lighting Consistency Index). They emit an exceptionally powerful, uniform and enveloping light. Extremely lightweight, compact and handy, the UltrapanelPRO are ideal for use inside and outside the studio and they can be powered by the mains or on V-mount batteries. With huge light output through the whole CCT spectrum you will have all the light power you need for your footage. All Lupo UltrapanelPRO can be used with egg crates and the dedicated softbox for an even softer light emission.

Built-in DMX/RDM

Body in reinforced technopolymer for a more practical use.

The UltrapanelPRO Dual Color 30, like all LED panels, LED Fresnels and Lupo accessories, was developed to provide professional performances and is built with high quality components. Lupo products are designed to be reliable over time. The eye-catching design and the functionality of the UltrapanelPRO Dual Color 30 are the highlights of this compact, versatile and incredibly powerful new generation LED panel. LEDs were chosen for their high colour rendering (CRI > 95, TLCI > 96) and for their colour temperature accuracy. By choosing a model from the UltrapanelPRO range you will be sure you are relying on a high quality and professional product.

Tuneable white

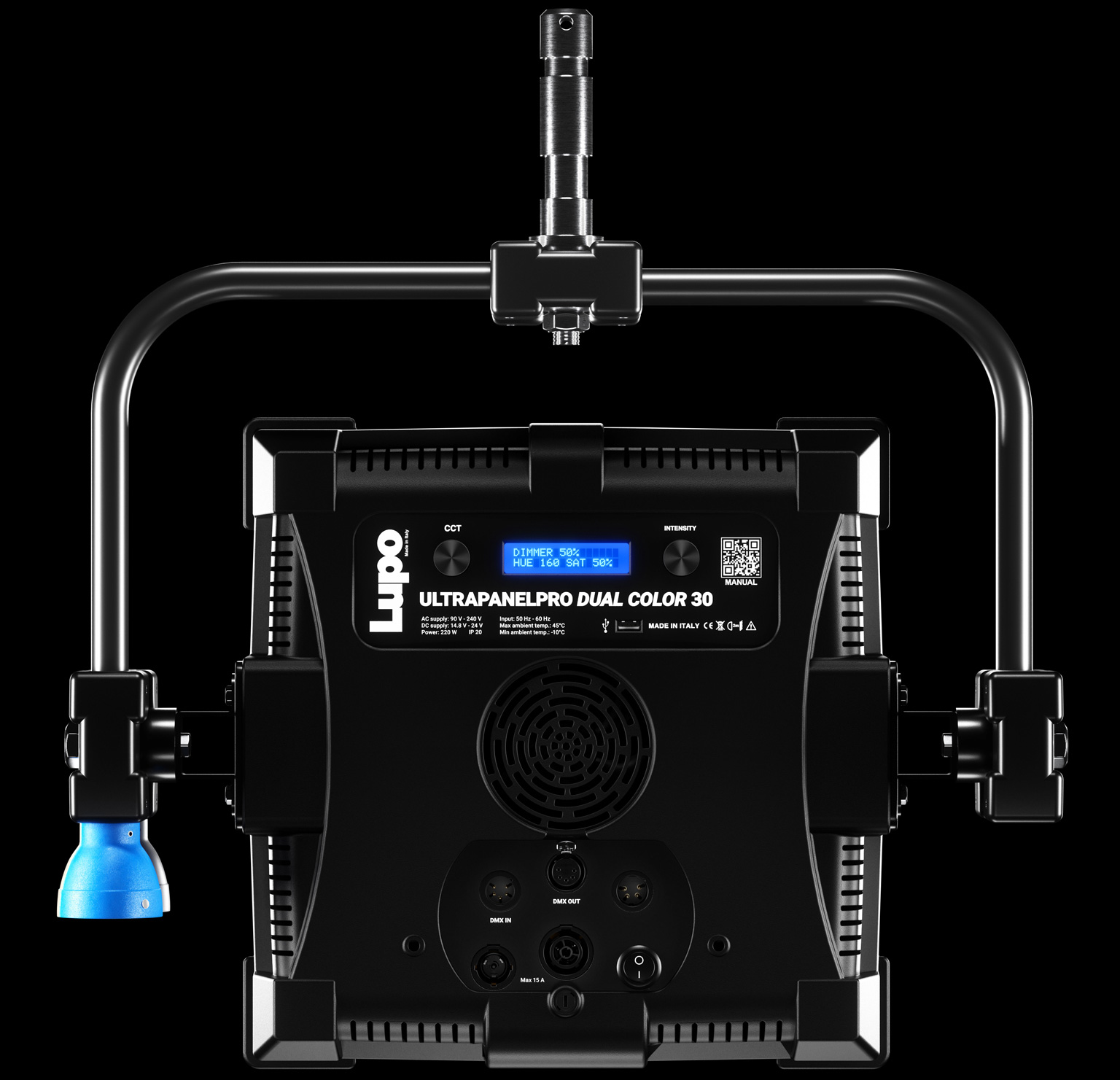

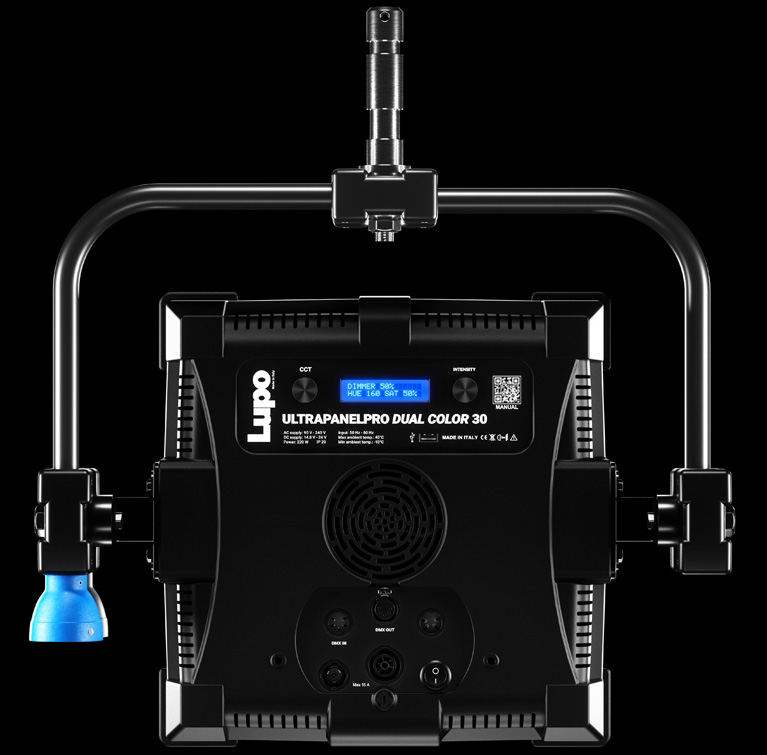

Available in the version with pole operated yoke.

Variable colour temperature from 2800 K to 6500 K. Very lightweight and compact (just 4.9 kg), easily transportable with their dedicated padded bags, they can be used in every shooting situation thanks to their operation with batteries or on the mains (universal 90 V — 240 V AC; 14,8 V — 24 V DC). The dedicated long life battery allows for a full power operation of about 1.7 hours. The weight of the battery is only 800 g and can be carried (along with chargers and accessories) in the same practical bag used for the UltrapanelPRO. The battery power connection is via a 4-pole standard XLR connector at the back of the panel.

Accessories

Complete
range
for every need.

All Lupo products are compatible with a wide range of accessories: batteries, v-locks, battery chargers, softboxes, carrying cases, tripods and clamps. By clicking on the link below you can see the full range of accessories for UltrapanelPRO Dual Color Hard 30.

Find out all accessories
